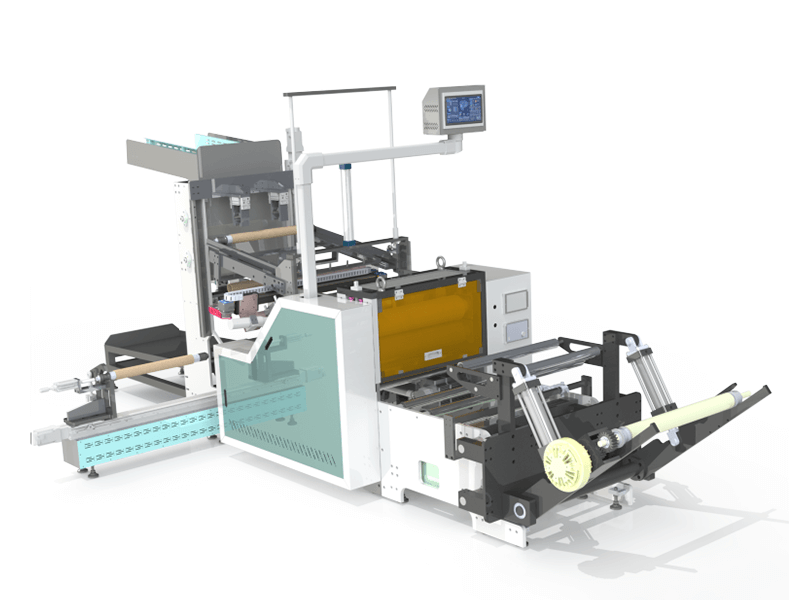

PAPBEE HONEYCOMB PAPER WRAPPING LINE
PAPBEE HONEYCOMB PAPER WRAPPING LINE

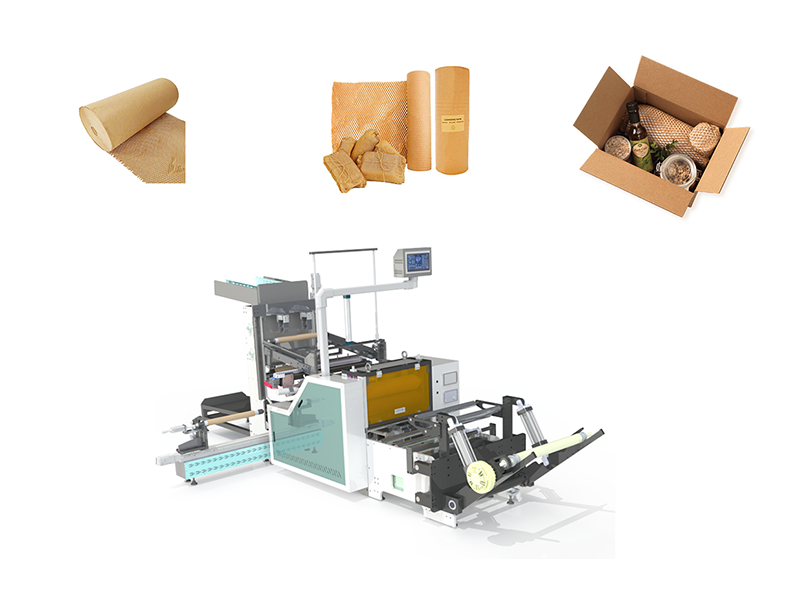

PAPBEE is used for rewinding white paper, yellow paper, kraft paper inroll into honeycomb net.Net making and rewinding could be completed atthe same time.
Features:
1. Withhighefficiency and energy saving.
2. Fast dynamic response and stable runningspeed are the significant advantages.
3. Adopts frequency conversion speed regulation, fullyintegrated circuit control.
4. Complete functions, good repeatability, stablespeed.
5. Reliable work. Absolutely correct movement.
6. Winding and unwinding tension is automatically controlled.
7. Two sections of electronic meter to ensure the accuracy.
Specs :
Max unwinding width : 500mm
Max unwinding diameter : 1200mm
Unwinding paper core : 76.2mm /3 inch
Max rewinding diameter : 300mm
Rewinding paper core ; 1 inch,1.5 inch, 2 inch(pls choose one)
Machine speed: 100-120m/min
Machine power : 4KW
External pressure：6-8kg/c㎡
Machine weight : 2500KGS
Machine Size : 3200*2000*1700mm
