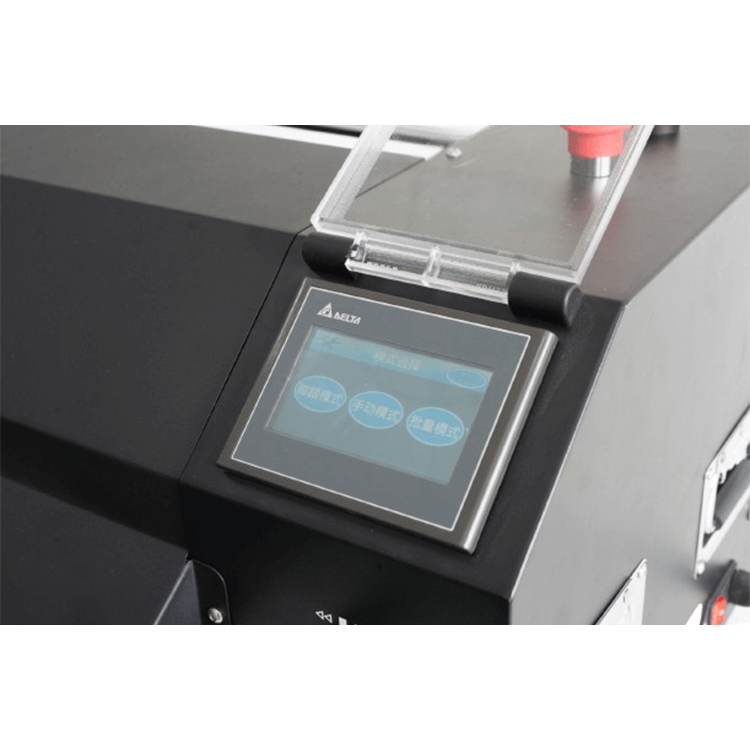

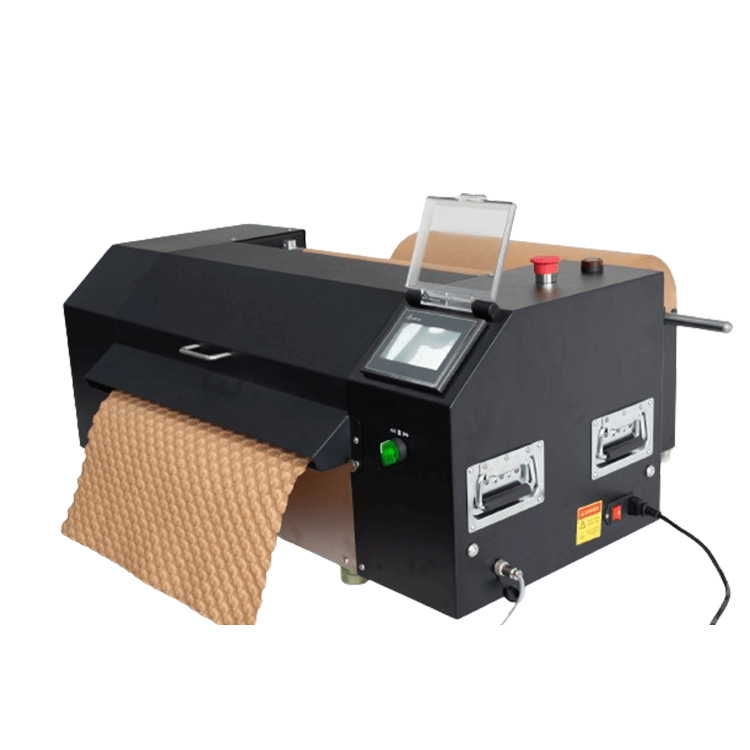

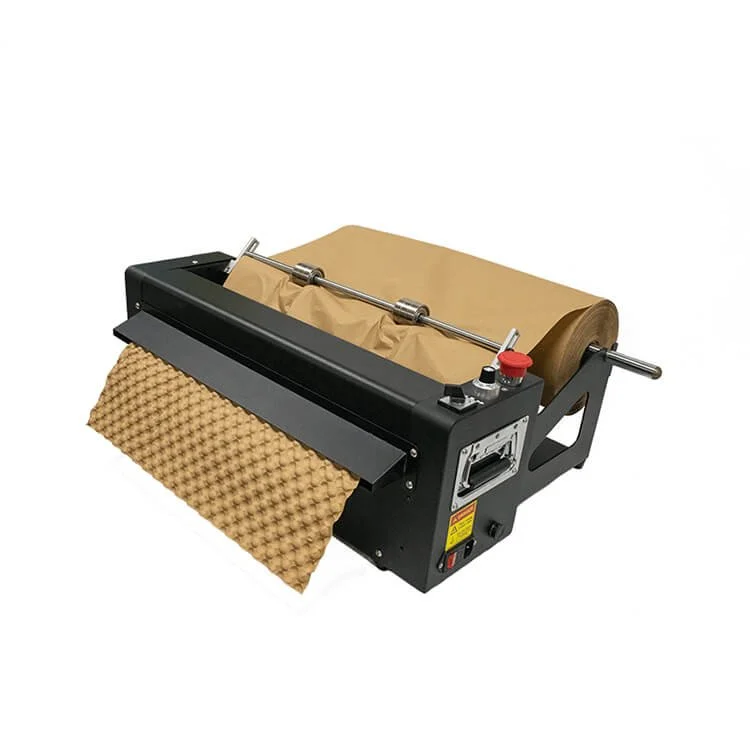

BUBBLE101

Power: 100W, AC 100~ 240V

Speed: Max10m/min

Paper specification: Width 30cm，70~160g

Size: 45*25*20cm

N.W: 20kg G.W: 27kg

Carton Size: 56*32*35cm

BUBBLE102

Power: 150W, AC 110 / 220V

Speed: Max10m/min

Paper specification: Width 50cm，70~160g

Size: 70*25*20CMN.W: 31kg

G.W: 37kgCarton

Size: 80*30*31CM

BUBBLE103

Power: 500W, AC 110 / 220V

Speed: Max20m/min

Paper specification: Width 55cm，70~160g

Size: 95*50*40CM

N.W: 80kg

G.W: 100kg

Carton Size: 117*58*48CM

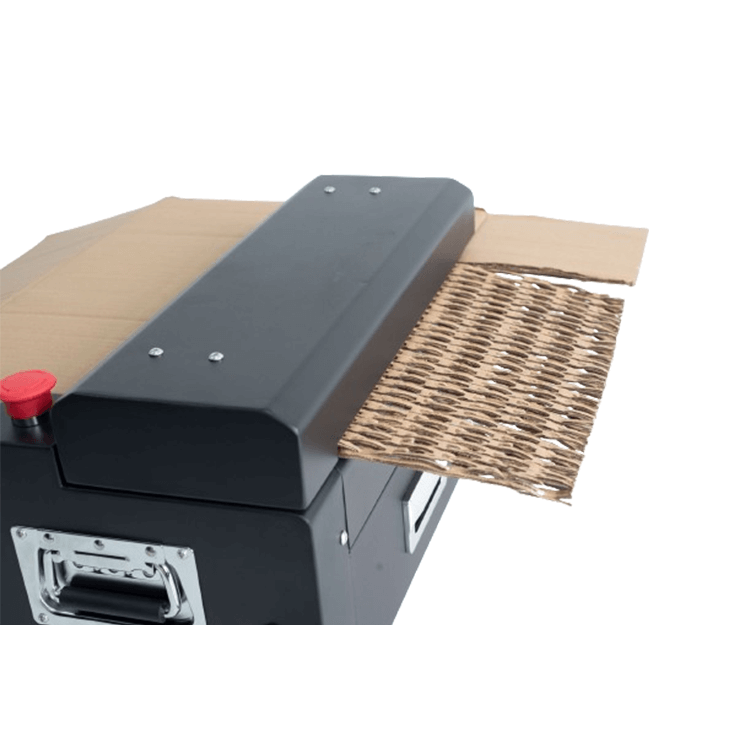

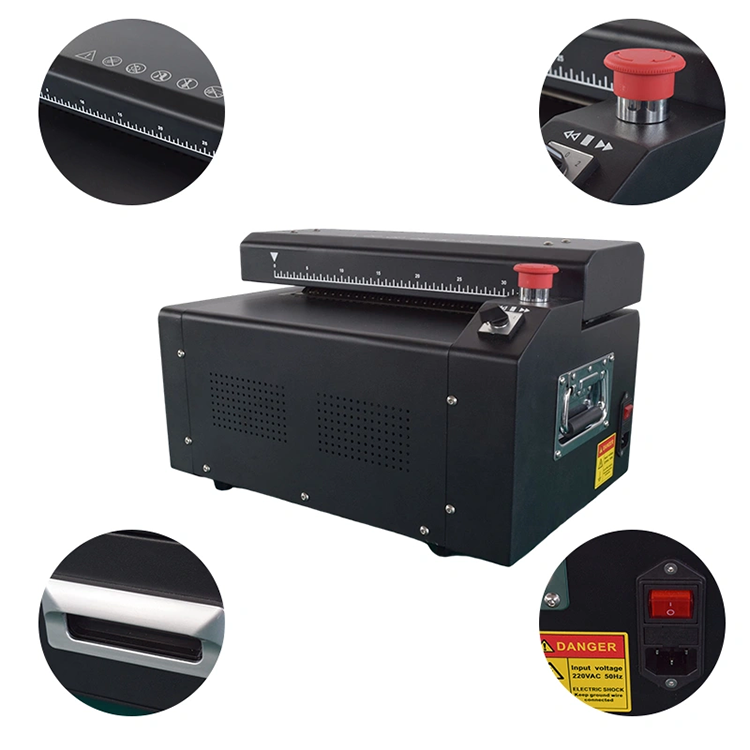

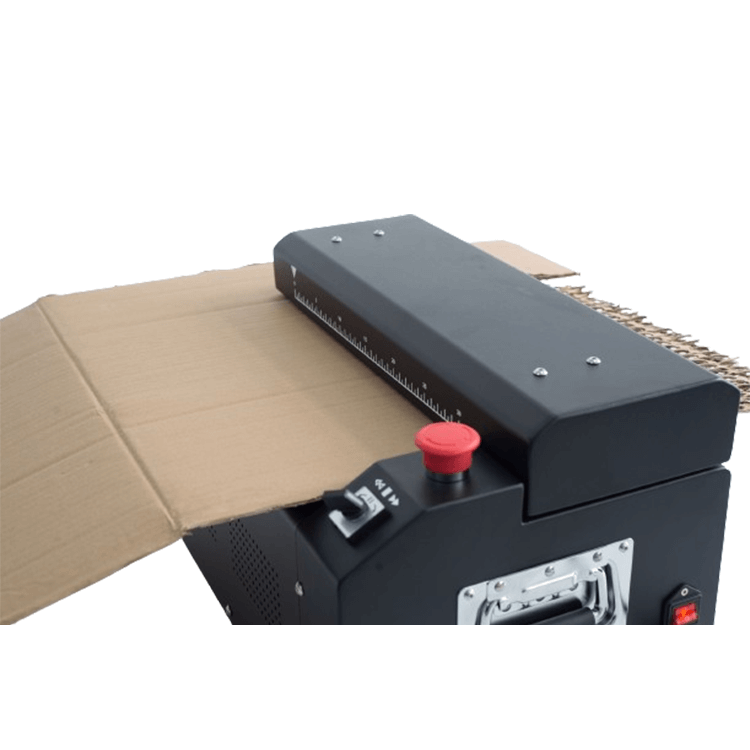

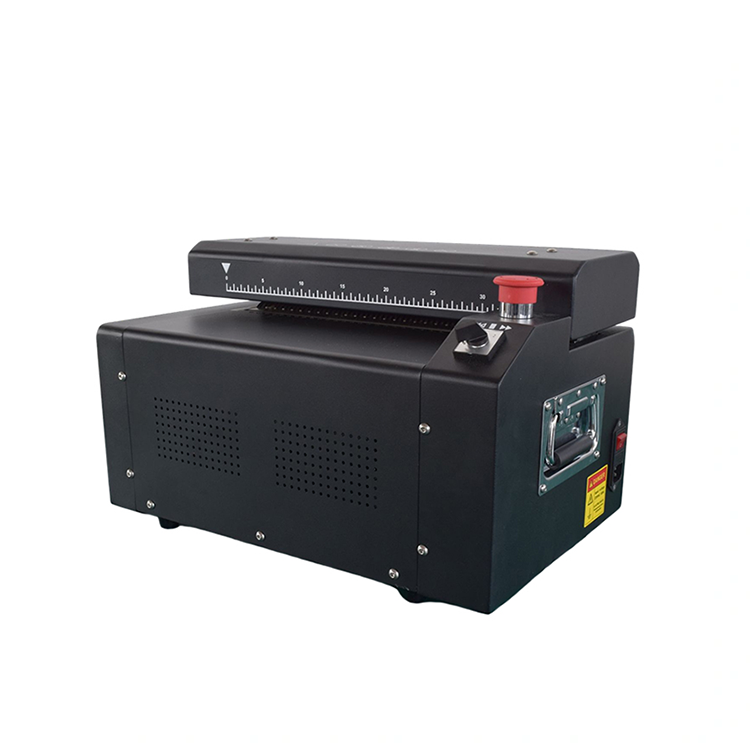

CARDBOARD WIDHT : 325MM

Power: 150W, AC 100~ 240V

Size: 42*25*26CMN.W: 33kg

G.W: 37kgCarton

Size:52*36*33CM

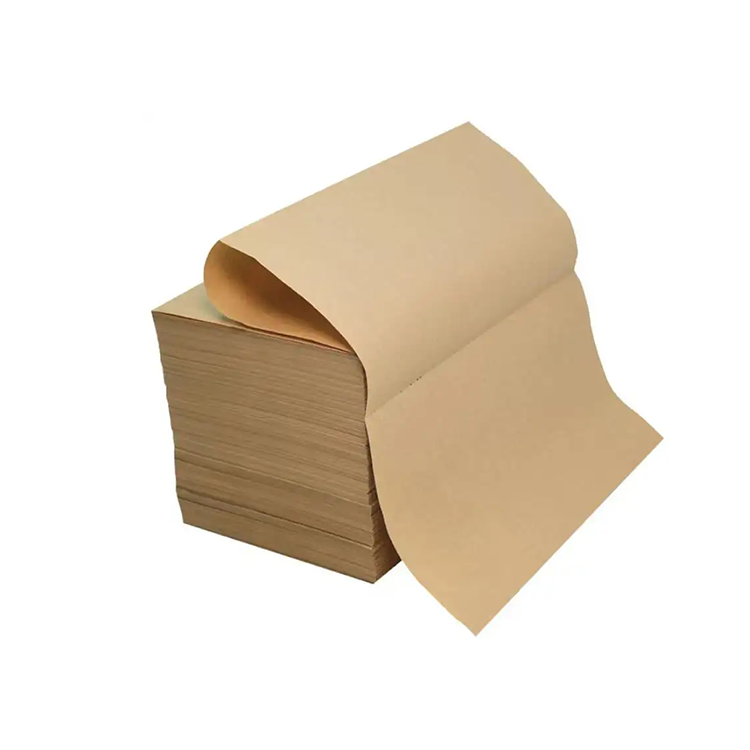

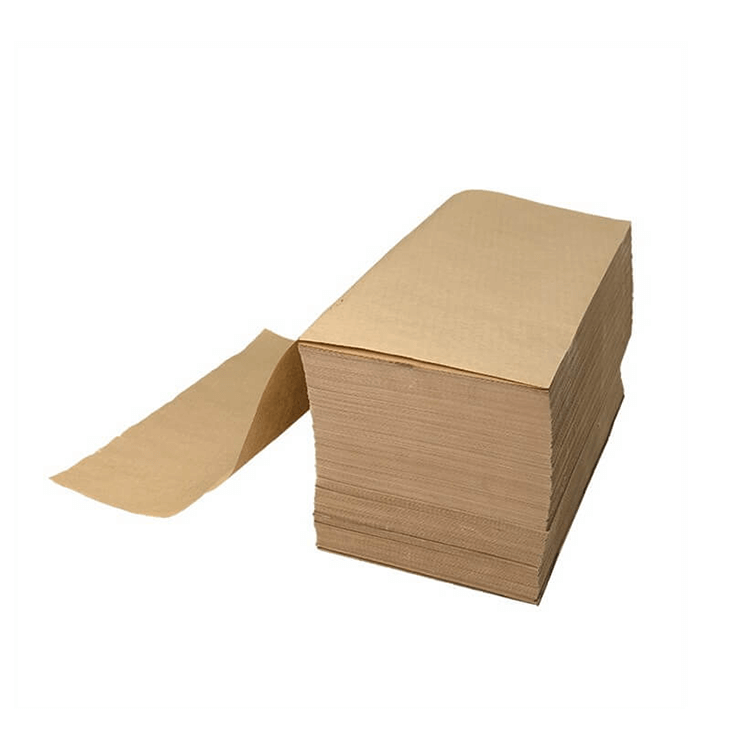

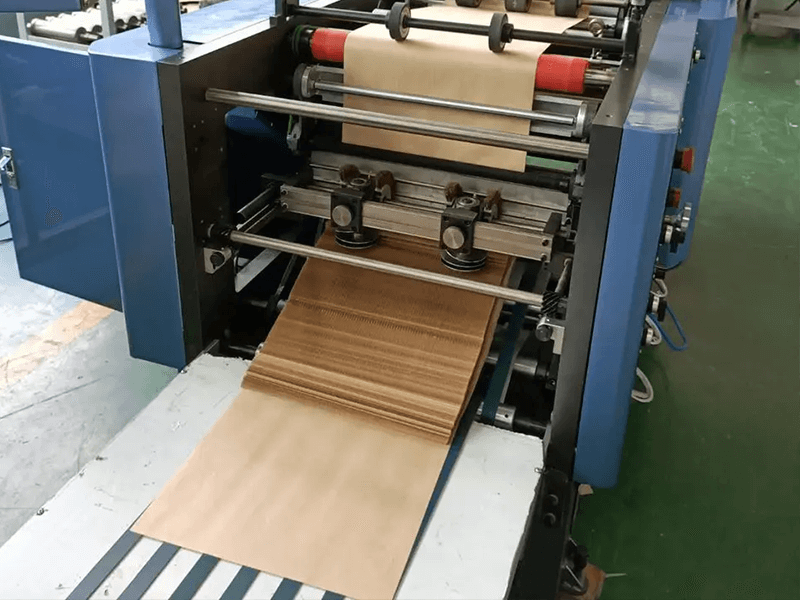

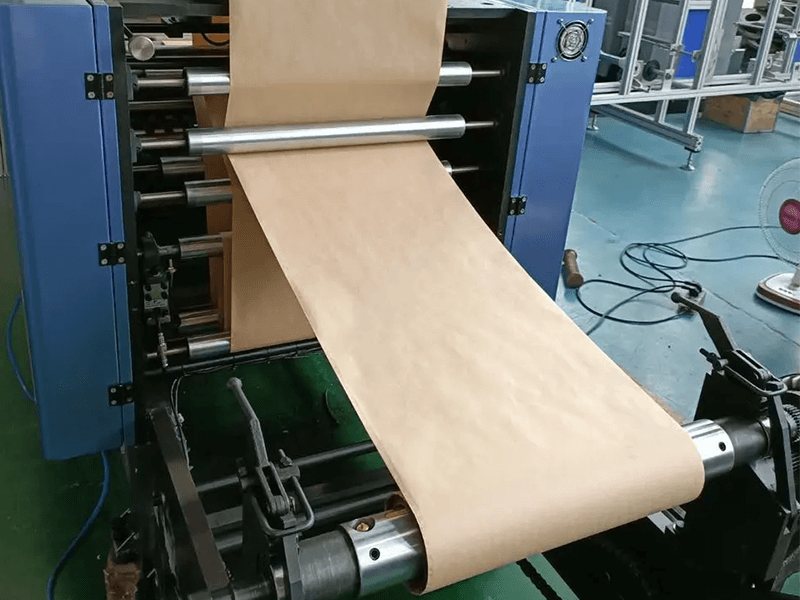

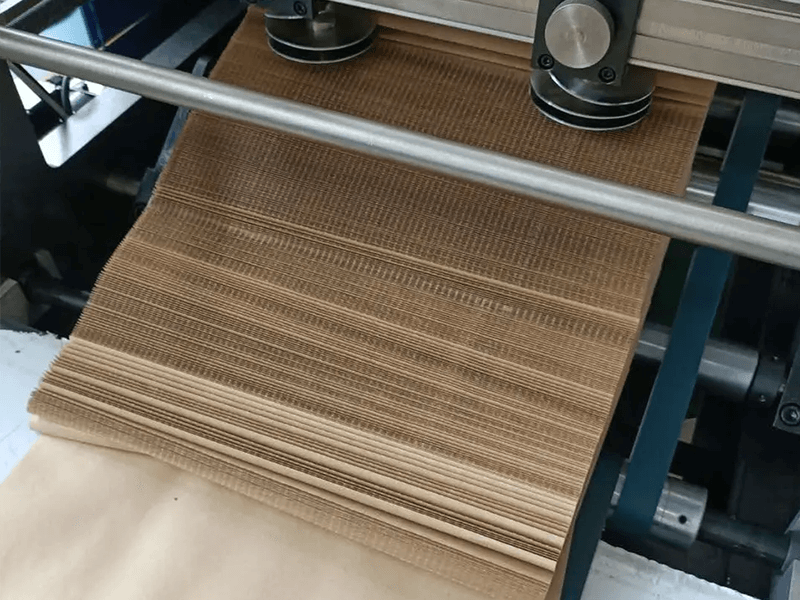

LEN380 is a perforating & folding machine with stepless speed regulation, automatic tension controller, photoelectric skew adjustment system, electronic counter and cast iron frame panel, effectively ensure all the work such as fast & steady transmission, auto paper feeding, pneumatic pressure, pneumatic rolling, auto slitting, sideline pressing, perforating, line pressing, slitting to be done in one round, greatly improve production efficiency and lowering the production cost. This machine is suitable for processing varies types of paper and carbonless copying paper.

MAX ROLL WIDTH :500MM

MAX UNWINDING DIA : 1000MM

PAPER WEIGHT : 40-150gsm

WORKING SPEED : 50-200M/MIN

FOLDING LENGTH : 5-15 INC

SIZE : 3600mm X 1200mmX1700mm
